2013 MWC: Anritsu High Volume Device Test Set - MT8870A

The MT8870A Universal Wireless Test Set is a test instrument from Anritsu that has been specifically designed for high volume manufacturing test of all common cellular and short range wireless technologies. An MT8870A instrument mainframe can contain up to four MU887000A TRX Test modules (10 MHz to 6 GHz*1). Each module has an integrated Vector Signal Generator (VSA) and Vector Signal Analyzer (VSA) to perform DUT transmitter and receiver tests. The MT8870A that has the MU887000A test module is able to control with an external PC to perform RF testing.
*1 : Standard is up to 3.8 GHz.

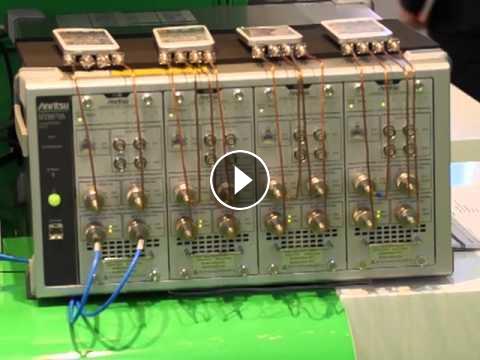

All-in-one platform accommodating 4 test modules
Up to four measurement modules can be installed in one main frame and each module can be controlled independently. The four installed modules share the same power supply, chassis, and internal bus interface, helping cut infrastructure costs.
Simultaneous measurement of 4 devices and parallel measurement of multiple wireless technologies for 1 device
With four modules installed in the MT8870A, four test devices can be connected and measured in parallel simultaneously. Furthermore, with mobile communications devices typified by smartphones and tablets, when needing multiple wireless technologies in one device, different technologies can be measured in parallel for up to four modules, helping reduce both measurement times and line test equipment footprint.
160 MHz measurement bandwidth as standard
The MU887000A TRX Test Module has a wide bandwidth of 160MHz as standard. It is able to perform RF transmitter / receiver testing of the latest WLAN standard 802.11ac wireless modules with a license for TX measurement and waveforms.
Support multiple wireless standards
The MU887000A TRX Test module is able to support to perform RF (PHY) testing of transmitter and receiver for both wireless technologies of cellular (LTE, W-CDMA, GSM etc.) and Short Range Wireless (WLAN and Bluetooth).
Supported systems : LTE-FDD, LTE-TDD, W-CDMA/HSPA, TD-SCDMA, GSM/EDGE, CDMA2000, 1xEVDO, WLAN 802.11ac, WLAN 802.11abgn, Bluetooth, FM, GPS, DVB-H, ISDB-T, ISDB-Tmm
The MT8870A Universal Wireless Test Set supports two types of remote commands: Native and SCPI.
The Native commands are based on the MT8820C remote command set and have high compatibility, particularly for sequence measurements and UE calibration.
Built-in Audio analyzer and Audio Generator (Option)
Built-in audio analyzer and audio generator support mono audio and stereo audio with analog interface or digital interface helping reduce the equipment footprint for wireless module manufacturing.
